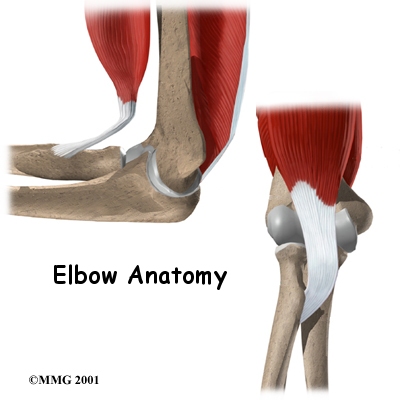

Elbow Anatomy


Physical Therapy in Waterbury for Elbow

Welcome to Peak Physical Therapy's guide to elbow anatomy.

At first, the elbow seems like a simple hinge-type joint, however when the complexity of the interaction of the elbow with the forearm and wrist is understood, it is easy to see why the elbow can cause problems when it does not function correctly.  Part of what makes us human is the way we are able to use our hands.  Effective use of our hands requires stable and painless elbow joints.

This guide will help you understand:

  • what parts make up the elbow
  • how those parts work together

#testimonialslist|kind:all|display:slider|orderby:type|filter_utags_names:Elbow Pain|limit:15|heading:Hear from some of our patients who we treated for *Elbow Pain*#

Important Structures

The important structures of the elbow can be divided into several categories. These include:

  • bones and joints
  • ligaments and tendons
  • muscles
  • nerves
  • blood vessels

Bones and Joints

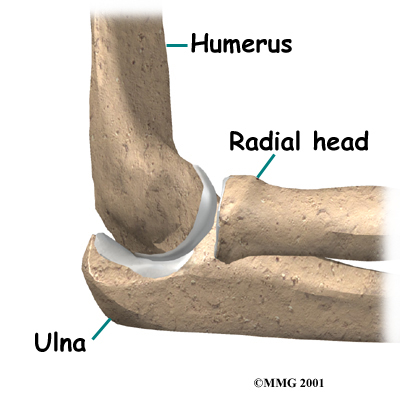

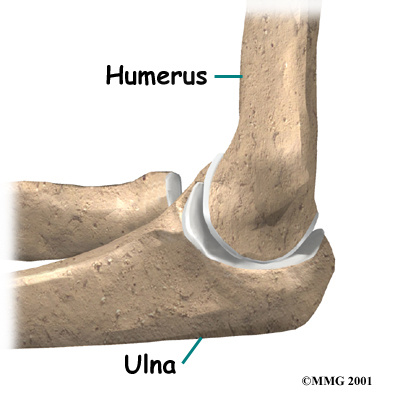

The bones of the elbow are the humerus (the upper arm bone), the ulna (the larger bone of the forearm, on the opposite side of the thumb), and the radius (the smaller bone of the forearm on the same side as the thumb). The elbow itself is essentially a hinge joint, meaning it bends and straightens like a hinge.  There is a second joint that makes up the elbow, where the end of the radius (the radial head), meets the humerus.

This joint is complicated because the radius has to rotate so that you can turn your hand palm up and palm down.  At the same time, it has to slide against the end of the humerus as the elbow bends and straightens.  This part of the elbow is even more complex because the radius also joins with the ulna to form a joint, and this part of the radius has to slide against the ulna as it rotates the wrist as well.  The end of the radius at the elbow is shaped like a smooth knob with a smooth cup at the end to fit on the end of the humerus. The edges are also smooth where it glides against the ulna.

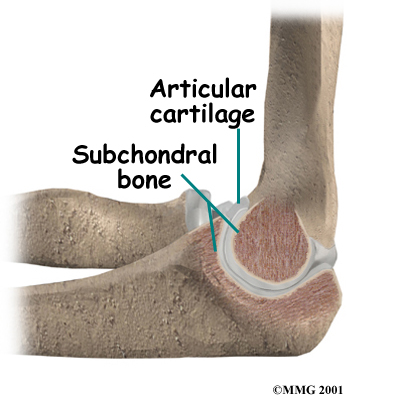

Articular cartilage is the material that covers the ends of the bones of any joint. Articular cartilage can be up to one-quarter of an inch thick in the large, weight-bearing joints. It is a bit thinner in joints such as the elbow, which don't support weight.  Articular cartilage is white, shiny, slippery, and has a rubbery consistency.

The function of articular cartilage is to absorb shock and provide an extremely smooth surface to make motion easier. It allows joint surfaces to slide against one another without causing any damage. We have articular cartilage essentially everywhere that two bony surfaces move against one another, or articulate.  In the elbow, articular cartilage covers the end of the humerus, the end of the radius, and the end of the ulna.

Ligaments and Tendons

There are several important ligaments in the elbow. Ligaments are soft tissue structures that connect bones to bones. The ligaments around a joint usually combine together to form a joint capsule. A joint capsule is a watertight sac that surrounds a joint and contains lubricating fluid called synovial fluid.

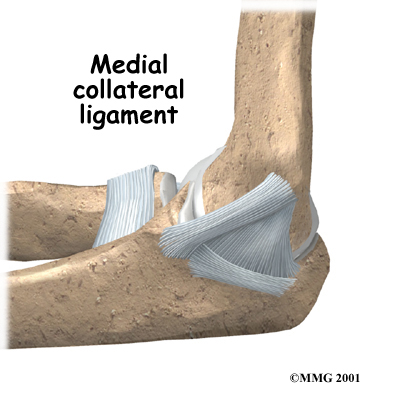

In the elbow, two of the most important ligaments are the medial collateral ligament and the lateral collateral ligament. The medial collateral is on the inside edge of the elbow, and the lateral collateral is on the outside edge. Together these two ligaments connect the humerus to the ulna and radius, and keep the bones tightly in place as they move around the end of the humerus. These ligaments are the main source of stability for the elbow but can be torn when there is an injury or dislocation to the elbow.  If they do not heal correctly the elbow can be too loose, or unstable.

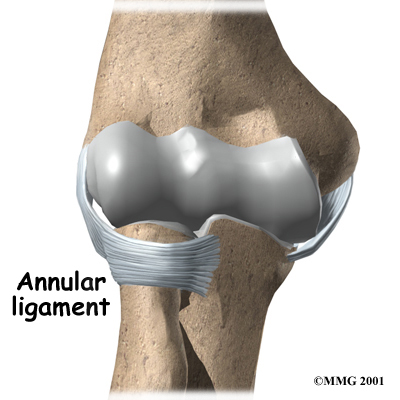

There is also an important ligament called the annular ligament that wraps around the radial head and holds it tight against the ulna. The word annular means ring shaped, and the annular ligament forms a ring around the radial head as it holds it in place. This ligament can be torn when the entire elbow or just the radial head is dislocated.

There are several important tendons around the elbow. The biceps tendon attaches the large biceps muscle on the front of the arm to the radius and allows the elbow to bend with force. You can feel this tendon crossing the front crease of the elbow when you tighten the biceps muscle.  The triceps tendon connects the large triceps muscle on the back of the arm with the ulna. It allows the elbow to straighten with force, such as when you perform a push-up.

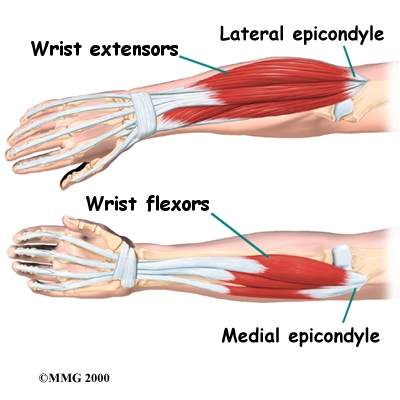

The muscles of the forearm cross the elbow and attach to the humerus. The outside, or lateral boney bump just above the elbow is called the lateral epicondyle.  Most of the muscles that straighten the fingers and extend the wrist all come together in one tendon to attach in this area. The inside, or medial, boney bump just above the elbow is called the medial epicondyle. Most of the muscles that bend the fingers and wrist all come together in one tendon to attach in this area. These two tendons are important to understand because they are a common location of tendonitis such as golfer’s elbow (medial common flexor tendonitis) and tennis elbow (lateral common extensor tendonitis.)


The main muscles that are important at the elbow have been mentioned above in the discussion about tendons. They are the biceps, the triceps, the wrist extensors (attaching to the lateral epicondyle) and the wrist flexors (attaching to the medial epicondyle).

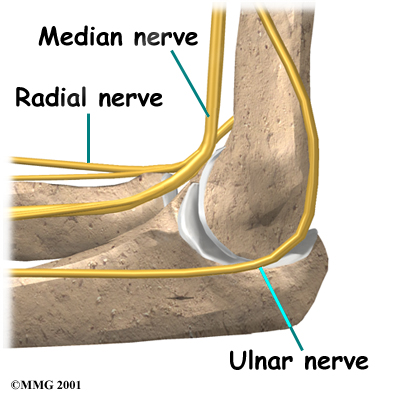

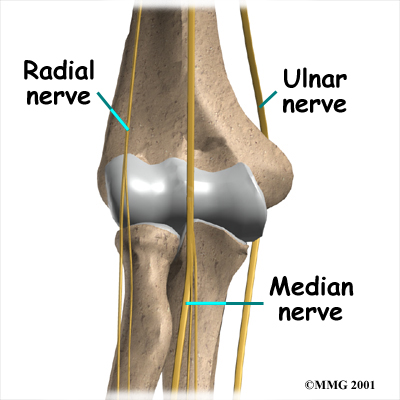

All of the nerves that travel down the arm pass across the elbow. Three main nerves that innervate the arm, forearm, and hand begin together at the shoulder: the radial nerve, the ulnar nerve, and the median nerve. These nerves carry signals from the brain to the muscles that move the arm. The nerves also carry signals back to the brain about sensations such as touch, pain, and temperature.

Some of the more common problems around the elbow are problems of the nerves.  Each nerve travels through its own tunnel as it crosses the elbow.  Due to the elbow having to bend a lot, the nerves must bend as well.  Constant bending and straightening can lead to irritation or pressure on the nerves within their tunnels and cause problems such as pain, numbness, and weakness in the arm and hand.

Blood Vessels

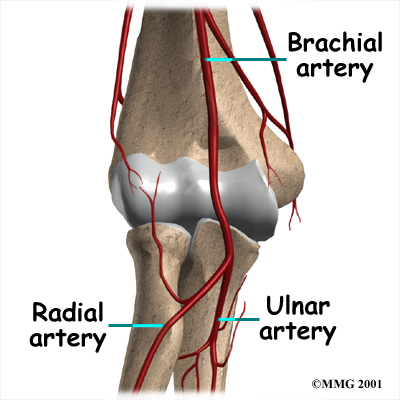

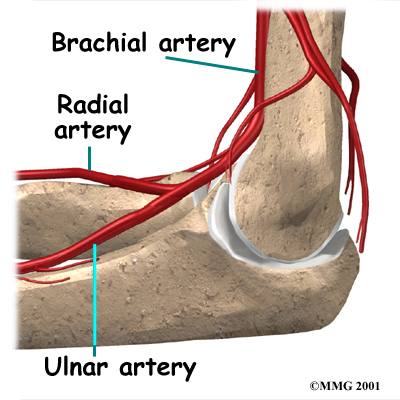

Traveling along with the nerves are the large vessels that supply the arm with blood.  The largest artery is the brachial artery that travels across the front crease of the elbow. If you place your hand in the bend of your elbow, you may be able to feel the pulsing of this large artery.  The brachial artery splits into two branches just below the elbow: the ulnar artery and the radial artery which both continue into the hand.  Damage to the brachial artery can be very serious because it is the only blood supply to the hand.


As you can see, the elbow is more than a simple hinge-type joint. It is designed to provide maximum stability as we position our forearm to use our hand.  When you contemplate all the different ways we use our hands every day and all the different positions we put our hands into, it is easy to understand how hard daily life can be when the elbow doesn't work well.

Portions of this document copyright MMG, LLC.
